Demystifying the N-Channel MOSFET

1. What's an N-Channel MOSFET Anyway?

Alright, let's talk transistors, specifically the N-Channel MOSFET. Don't let the name scare you; it's not as complicated as it sounds. Think of it as a tiny, electronically controlled switch. It's the kind of switch that's at the heart of countless electronic devices we use every day. From your smartphone to your laptop to sophisticated industrial equipment, MOSFETs are working hard to keep things humming along. They are extremely versatile and efficient.

So, what does MOSFET even stand for? It's short for Metal-Oxide-Semiconductor Field-Effect Transistor. That's a mouthful, isn't it? We will break it down. The 'metal' part refers to the original gate material (though polysilicon is now more common). 'Oxide' refers to the insulating layer beneath the gate, and 'Semiconductor' is the material the transistor is made from (usually silicon). The 'Field-Effect' part is the crucial bit — it indicates that the current flow is controlled by an electric field. In essence, we are manipulating the electrical characteristics of the material!

Now, before we dive deep into the "how," let's appreciate why these little guys are so popular. MOSFETs are power-efficient compared to older transistor types, and they can switch signals very, very fast. They're also relatively small and easy to manufacture, making them perfect for today's densely packed electronic circuits. Imagine trying to build a modern smartphone with vacuum tubes! The size alone would be preposterous. So, thank your friendly neighbourhood MOSFET for fitting all that computing power into your pocket.

Think of it like a water tap. The gate is like the handle of the tap, and the amount you turn it dictates how much water flows through the pipe. In the N-Channel MOSFET, the "water" is electrons, and the "pipe" is the channel between the source and drain terminals. By applying voltage to the gate, we control the flow of electrons, effectively turning the transistor "on" or "off". Incredibly useful, isn't it?

The Nitty-Gritty of N-Channel MOSFET Operation

2. The Three Key Terminals

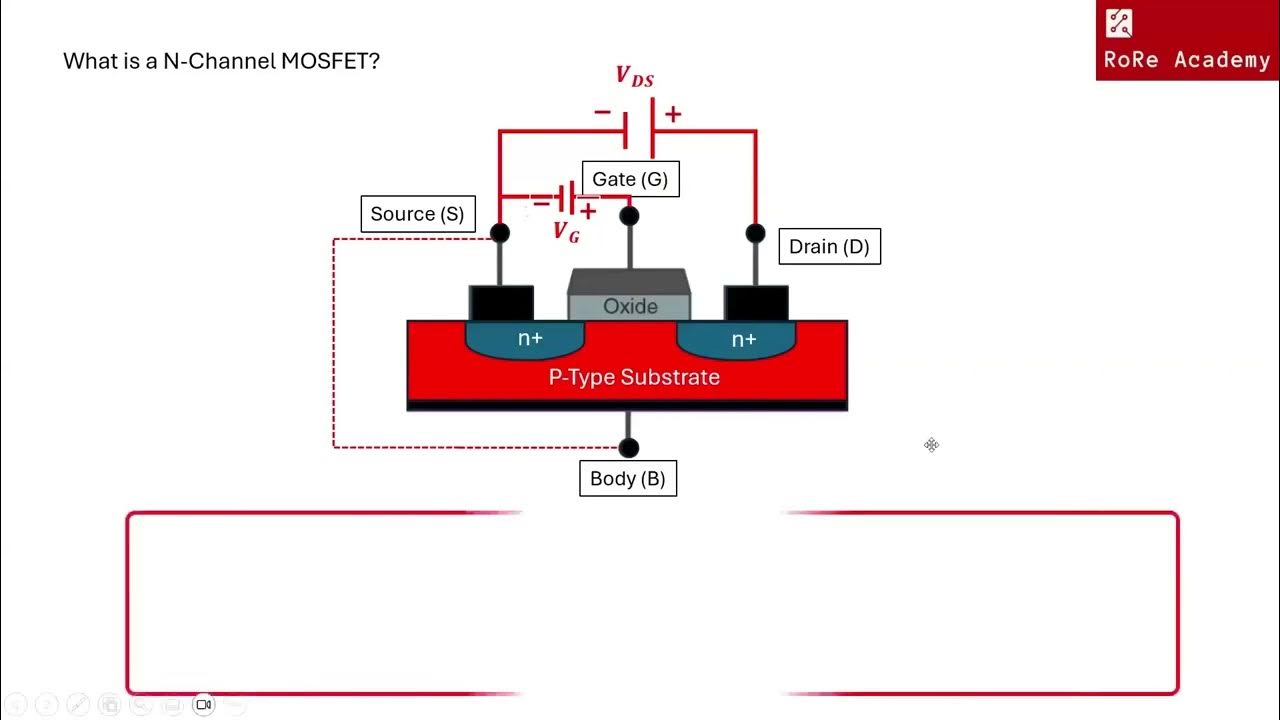

An N-Channel MOSFET has three essential terminals: the Source, the Drain, and the Gate. The Source is where electrons enter the channel, and the Drain is where they exit. Think of them as the beginning and end of the electron's journey through the transistor. The Gate is the control terminal; it's like the conductor of our electron orchestra.

When no voltage is applied to the Gate, there's no conductive channel between the Source and Drain. It's like the water tap being firmly closed — no flow. However, things change when we apply a positive voltage to the Gate. This voltage creates an electric field that attracts electrons to the region beneath the Gate. The more voltage you apply, the stronger the electric field, and the more electrons are attracted. This builds up a "channel" of negative charge, allowing current to flow between the Source and Drain. It's like slowly opening the tap, allowing more and more water to flow.

The crucial thing to understand is that the Gate doesn't actually draw any current (ideally, anyway). It's like a remote control; it uses a small signal (the Gate voltage) to control a much larger flow of current between the Source and Drain. This makes MOSFETs incredibly efficient switches.

Now, it's important to note the "N-Channel" part. This indicates that the channel formed between the Source and Drain is composed of electrons (negative charge carriers). In contrast, a P-Channel MOSFET uses holes (positive charge carriers). The choice between N-Channel and P-Channel depends on the specific application and circuit design.

The Magic Threshold Voltage

3. Beyond Just Turning On

There's a special voltage called the "Threshold Voltage" (Vth). It is the voltage you need to apply to the Gate before a conductive channel begins to form. Think of it as the minimum pressure needed to open our water tap enough to allow water to trickle through. Below this voltage, the MOSFET is essentially "off," with very little current flowing between the Source and Drain. Above this voltage, the MOSFET starts to "turn on," allowing current to flow.

The amount of current flowing between the Source and Drain is directly related to the Gate voltage. The higher the Gate voltage (above the threshold voltage), the more current flows. This allows the MOSFET to be used not only as a simple on/off switch but also as a variable resistor, precisely controlling the amount of current in a circuit.

Consider this scenario. You are dimming the lights in your house. Instead of a mechanical switch, imagine a MOSFET controlling the current flow to the light bulb. By adjusting the Gate voltage, you are fine-tuning the current, making the light brighter or dimmer. This precise control is what makes MOSFETs so versatile.

Threshold voltage itself isn't a fixed value, it varies by the fabrication process of the transistor. And the temperature also affects it slightly. Manufacturers strive to keep it within a tight range, but it's one of the parameters considered when designing circuits. Furthermore, some MOSFETs are designed with "enhancement mode" and "depletion mode". The behavior of their current-voltage relationship differs but we are focusing on the standard enhancement mode in this discussion.

MOSFETs in Action

4. Where You'll Find These Little Workhorses

Where can you find MOSFETs in the real world? Everywhere! They're the backbone of modern electronics. Think about your computer. The CPU and GPU are packed with millions (or even billions!) of MOSFETs that are switching rapidly to perform calculations. From basic logic gates to complex memory circuits, MOSFETs are the unsung heroes of computing.

Power supplies also rely heavily on MOSFETs. They efficiently switch power on and off to regulate voltage and current, ensuring that your devices receive the correct amount of power. This is especially important in devices like laptops and smartphones, where battery life is crucial.

Audio amplifiers use MOSFETs to boost audio signals, making them louder. MOSFETs can provide high gain and low distortion, making them ideal for audio applications. From your headphones to your home stereo system, MOSFETs are contributing to the sound you hear.

Even your car uses MOSFETs! They're used in engine control systems, power windows, and various other electronic components. The reliability and efficiency of MOSFETs make them perfect for the demanding environment of an automobile. So, the next time you're driving, remember that MOSFETs are playing a role in keeping you safe and comfortable.

Troubleshooting Basics

5. Some Things to Consider

Okay, what happens if your circuit with MOSFETs is acting up? One common issue is overheating. MOSFETs can generate heat when switching rapidly or handling large currents. Adequate heat sinking is essential to prevent damage. Make sure your MOSFET is properly attached to a heatsink, and that the heatsink is large enough to dissipate the heat. Overheating will lead to performance degradation, or complete failure.

Another common problem is electrostatic discharge (ESD). MOSFETs are sensitive to static electricity, which can damage the gate oxide layer. Always use proper ESD precautions when handling MOSFETs, such as wearing an anti-static wrist strap and working on an anti-static mat. Protect your components! Avoid touching the pins of the MOSFET directly.

If your MOSFET isn't switching properly, check the gate voltage. Make sure it's within the specified range for your particular MOSFET. Also, check the source and drain voltages to see if they are what you expect. A multimeter is your best friend for these checks.

Finally, remember to consult the datasheet for your specific MOSFET. The datasheet contains crucial information about the MOSFET's characteristics, such as the threshold voltage, maximum current, and switching speed. Understanding these parameters is essential for troubleshooting and designing effective circuits. Consider using a curve tracer if you require detailed analysis of a component. It is a versatile instrument that can provide valuable insights into the transistor's operation.

FAQ

6. Common Queries and Clarifications

Q: What's the difference between an N-Channel and a P-Channel MOSFET?

A: In an N-Channel MOSFET, current flows when a positive voltage is applied to the Gate. In a P-Channel MOSFET, current flows when a negative voltage is applied to the Gate. N-Channel MOSFETs generally have better performance due to higher electron mobility, but P-Channel MOSFETs can be useful in certain circuit configurations. In most cases, an N-channel MOSFET is preferred for the low side of a switch and a P-channel is preferred for the high side.

Q: How do I choose the right MOSFET for my application?

A: Consider factors such as the voltage and current requirements, switching speed, on-resistance (Rds(on)), and gate charge (Qg). The datasheet is your best resource for finding these parameters. Ensure that the MOSFET's ratings exceed the maximum expected values in your circuit to provide a safety margin.

Q: Can I use a MOSFET as a variable resistor?

A: Yes! By controlling the Gate voltage, you can precisely control the current flow between the Source and Drain, effectively using the MOSFET as a variable resistor. This is commonly used in applications such as dimming lights or controlling motor speed.

Q: What does Rds(on) mean?

A: Rds(on) refers to the "drain-to-source on-resistance." It's the resistance between the drain and source terminals when the MOSFET is fully turned on. A lower Rds(on) means less power is wasted as heat, making the MOSFET more efficient. Therefore, a lower value is preferred in many power applications.
